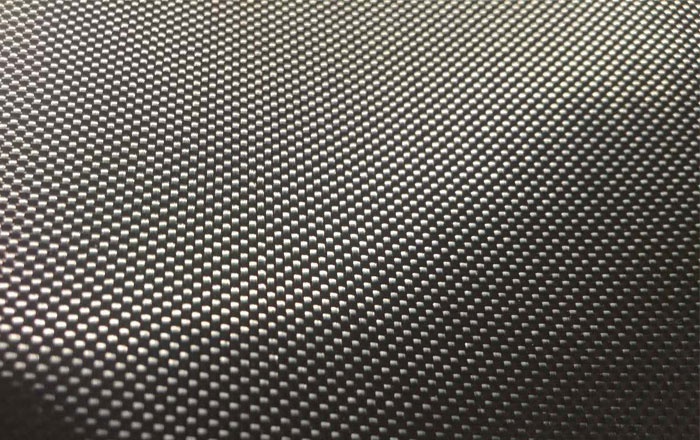

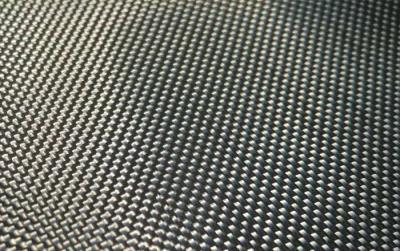

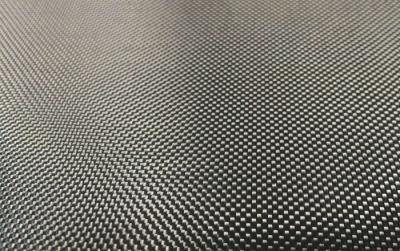

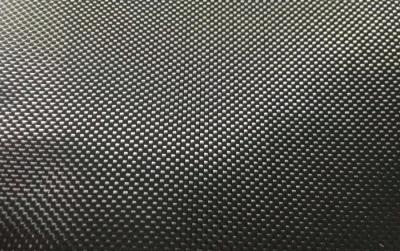

1K 120gsm Carbon Fiber Fabric

•
•
•
•

● Light weight, high strength, high modulus

● Fatigue resistance, heat resistance

● Corrosion resistance, drug resistance

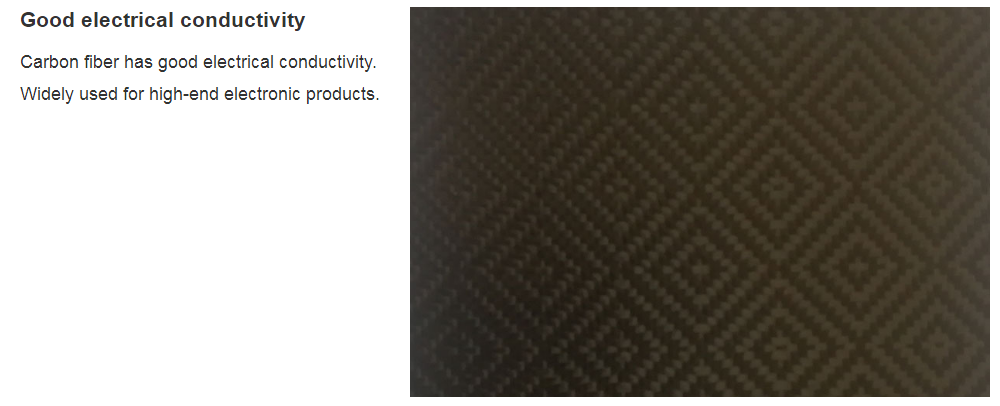

● Electrical conductivity, X-ray penetrability

● 100% high quality carbon fiber raw material

● Customized type: 1K, 3K, 6K, 12K

Contact Us

Carbon fiber is the most advanced and popular reinforcements in current time, which has light weight, high strength and other excellent features. It could be widely used in aerospace, transportation, building materials, medical equipment, sports equipment and other fields. Horyen provides standard textiles as 1K、3K、6K、12K and other different specifications.

Code No.	Style	width	Density（10m/m）		Thickness	Weight	Length	Re-mark
		m/m	Warp	Fill	m/m	g/㎡	m
FZ-cf-1001	Plain	1000	9	9	0.12	120	100	1K
FZ-cf-1002	Plain	1000	10.5	10.5	0.14	140	100	1K
FZ-cf-1003	Plain/Twill	1000	5	5	0.20	200	100	3K
FZ-cf-1004	Plain/Twill	1000	6	6	0.24	240	100	3K
FZ-cf-1005	Jacquard	1000	6	6	0.24	240	100	3K
FZ-cf-1006	Jacquard	1000	7	7	0.28	280	100	3K
FZ-cf-1007	Plain/Twill	1000	4	4	0.38	320	100	6K
FZ-cf-1008	Plain/Twill	1000	4.5	4.5	0.4	360	100	6K
FZ-cf-1009	Plain	1000	2.5	2.5	0.40	400	50	12K
FZ-cf-1010	Plain	1000	3	3	0.48	480	50	12K
FZ-cf-1011	Plain	1000	4	3.3	0.58	585	50	12K
FZ-cf-1012	Plain	1000	3.8	3.7	0.60	600	50	12K
FZ-cf-1013	Twill	1000	4	3.3	0.58	585	50	12K
FZ-cf-1014	Twill	1000	3.8	3.7	0.60	600	50	12K
FZ-cf-1015	Twill	1000	4	4	0.64	640	50	12K
FZ-cf-1016	UD	500	2.5		0.111	200	100	12K
FZ-cf-1017	UD	500	3.7		0.167	300	100	12K
