● Light weight, high strength, high modulus
● Fatigue resistance, heat resistance
● Corrosion resistance, drug resistance

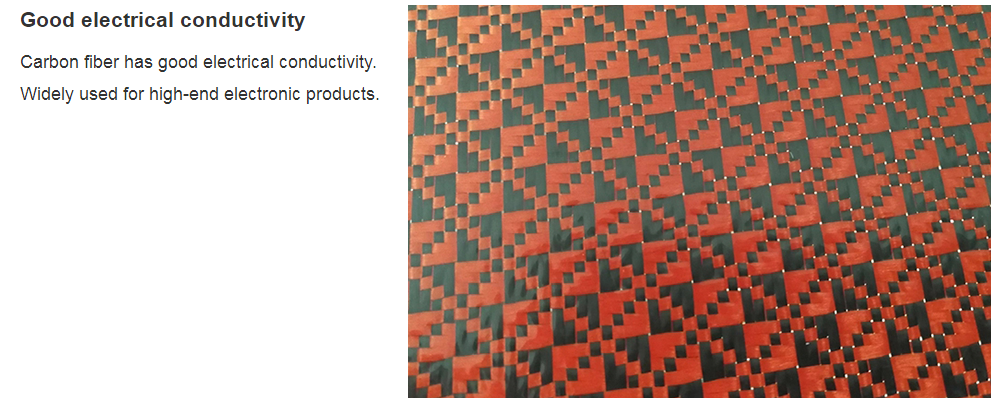

● Electrical conductivity, X-ray penetrability
● 100% high quality carbon fiber raw material
● Customized type: 1K, 3K, 6K, 12K
● Light weight, high strength, high modulus
● Fatigue resistance, heat resistance
● Corrosion resistance, drug resistance
● Electrical conductivity, X-ray penetrability
● 100% high quality carbon fiber raw material
● Customized type: 1K, 3K, 6K, 12K

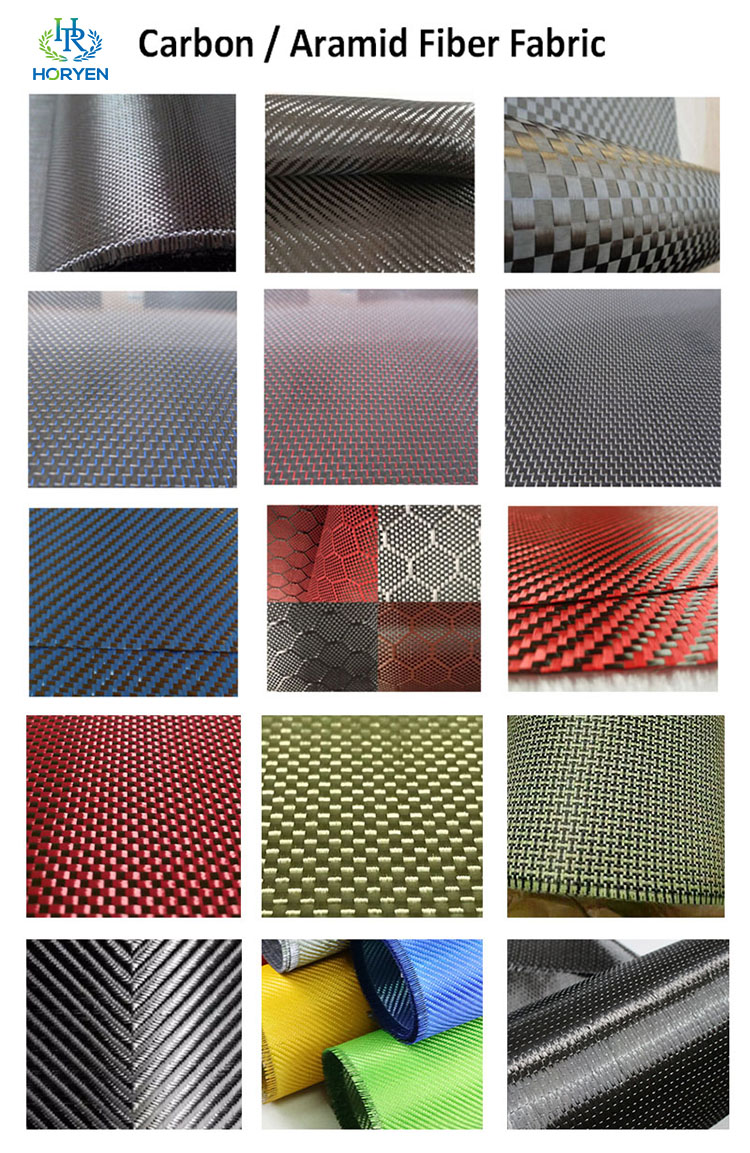

Carbon fiber and aramid fiber hybrid fabric, retain the rigidity of carbon fiber, and combine toughness of aramid fiber ,made it the perfect combination of strength and flexibility. It is a high performance fabric, mainly used in the field of sports equipment, aerospace and industrial.
Code No. | Style | Width | Density（10m/m） | Thickness | Weight | Length | Re-mark | |
m/m | Warp | Fill | m/m | g/㎡ | m | |||
FZ-ca-2001 | Plain | 1000 | 5 | 5 | 0.20 | 185 | 100 | 3k+1500d/Yellow |
FZ-ca-2002 | Plain | 1000 | 5.5 | 5.5 | 0.22 | 205 | 100 | 3k+1500d/Yellow |
FZ-ca-2003 | Plain | 1000 | 5 | 5 | 0.20 | 190 | 100 | 3k/Red |
FZ-ca-2004 | Plain | 1000 | 5 | 5 | 0.20 | 190 | 100 | 3k/Blue |
FZ-ca-2005 | Twill | 1000 | 5 | 5 | 0.20 | 185 | 100 | 3k+1500d/Yellow |
FZ-ca-2006 | Twill | 1000 | 5.5 | 5.5 | 0.22 | 205 | 100 | 3k+1500d/Yellow |
FZ-ca-2007 | Twill | 1000 | 5 | 5 | 0.20 | 190 | 100 | 3k/Red |
FZ-ca-2008 | Twill | 1000 | 5 | 5 | 0.20 | 190 | 100 | 3k/Blue |
FZ-ca-2009 | Jacquard | 1000 | 6 | 6 | 0.24 | 220 | 100 | 3k+1500d/Yellow |
FZ-ca-2010 | Jacquard | 1000 | 6 | 6 | 0.24 | 220 | 100 | 3k/Red |
FZ-ca-2011 | Jacquard | 1000 | 6 | 6 | 0.24 | 220 | 100 | 3k/Blue |
